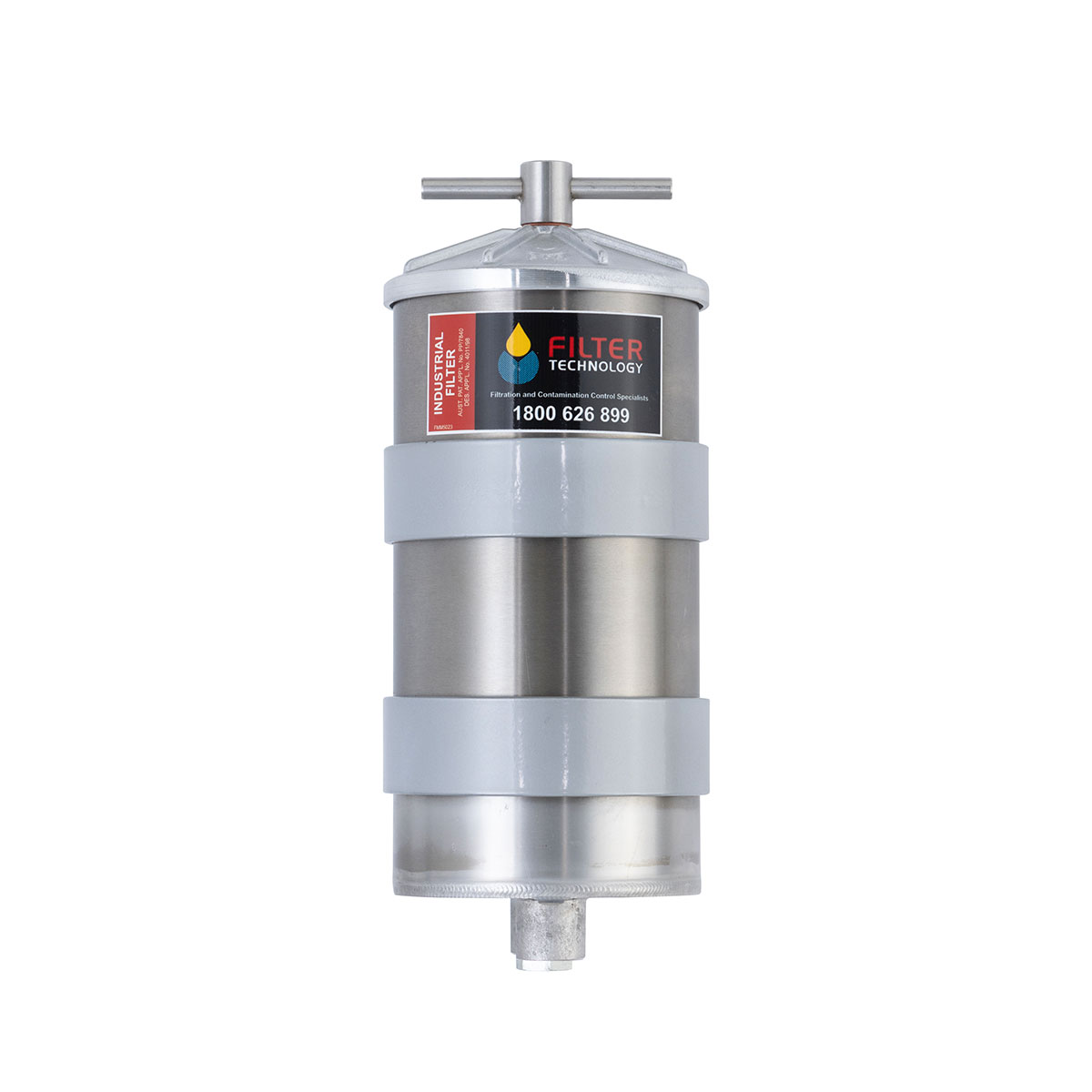

FM3001 Engine Oil Filtration Unit

Suitable for use on small gearboxes and lubrication systems (up to 50 litres capacity). They are typically used on small diesel engines (up to 10 litre sump capacity), forklifts and stationary power plants.

Interested in this product?

Enquire now

M3001 Engine Oil Filters are suitable for use on:

small gearboxes
lubrication systems up to 50 litres (11 gals)
hydraulic systems up to 100 litres (22 gals)
small diesels, forklifts and stationary powerplants

Filter Technology engine oil filters are a by-pass unit. There are three basic considerations when installing Filter Technology engine oil filters:

Mounting location.
Oil pressure source.
Oil return points.

FM3001 filters include 1 element and:

3 x 3/4″ UNO female threads for inlet and outlet and pressure gauge or drain.
1 x 1.5 mm (1/16″) hole in the 10 mm (3/8″) return tube which controls flow in engines, or 1 x 6 mm (1/4″) hole which controls flow in hydraulics.

FM3301 Quick Change Filter Assembly

Comprises FM3001 filter assembly including lid but minus housing. Enables quick and easy filter changes in the field, allowing assembly to be returned to the workshop for servicing.

FM3001 Flow Rates
