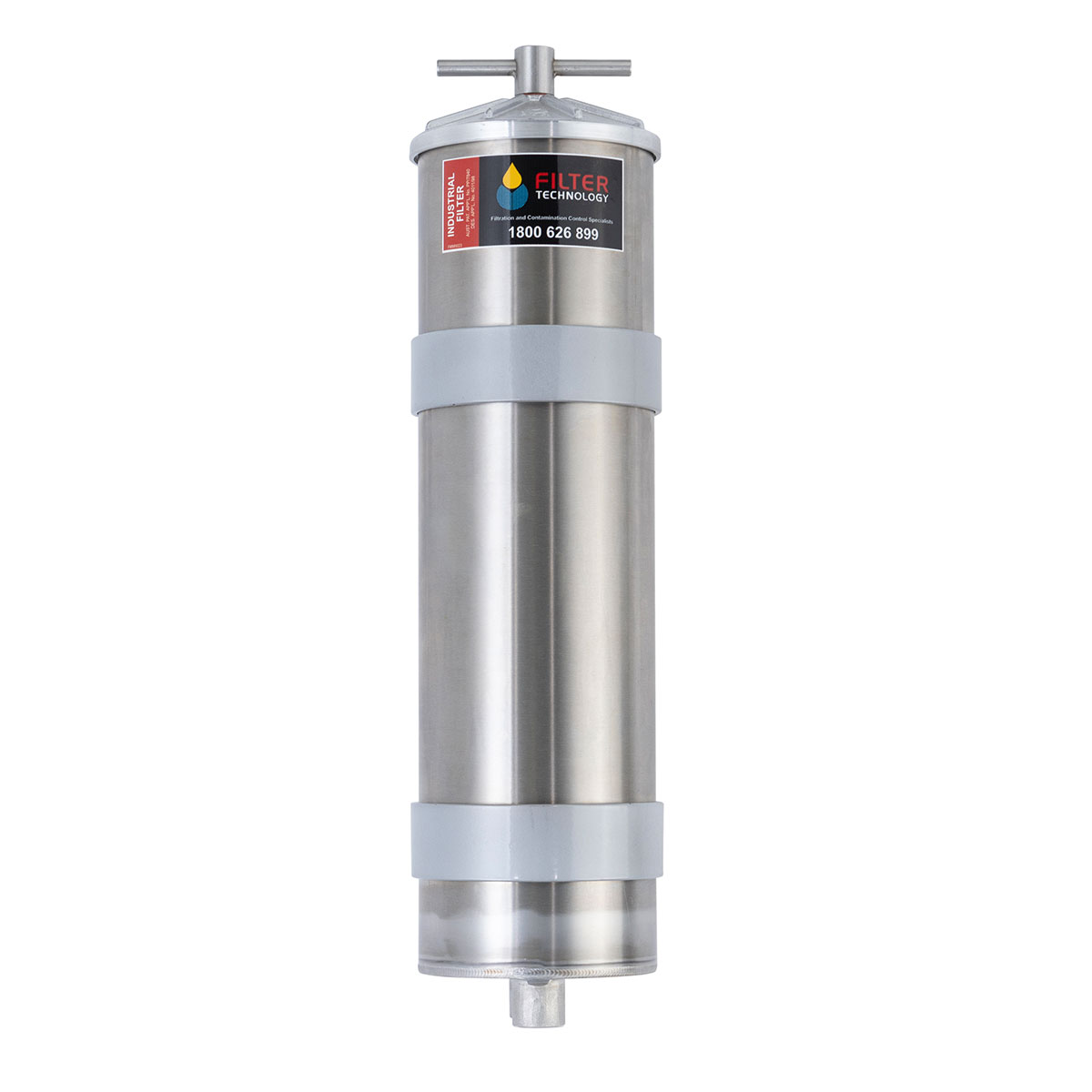

FM3102 Engine Fuel Filtration Unit

FM3102 Engine Fuel Filters are suitable for use on:

• small to medium size trucks (4-8 tonnes)
• gensets (50-200 hp)
• remote engine installations
• construction and agricultural equipment

Filter Technology engine fuel filters are a full flow filter unit. There are three basic considerations when installing Filter Technology engine fuel filters:

• Mounting location.
• Bleed off point for the existing system to the filter.
• Return from the filter into the existing system.

FM3102 filters include 2 elements and:

• 3 x 3/4″ UNO female threads for inlet and outlet and pressure gauge or drain.
• 2 x 6 mm (1/4″) holes in the 10 mm (3/8″) return tube allow fuel to flow through unrestricted.

FM3402 Quick Change Filter Assembly

Comprises FM3102 filter assembly including lid but minus housing. Enables quick and easy filter changes in the field, allowing assembly to be returned to the workshop for servicing.
