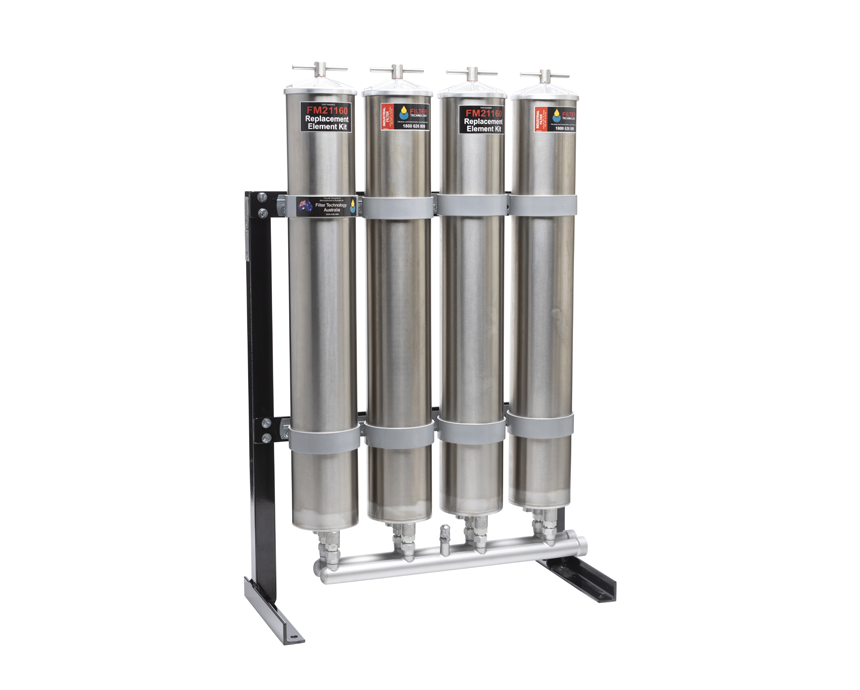

FM40443 Fixed Bowser Filtration Unit

Function:

The FM40443 is designed to go on the outlet of the dispensing pump. It is a matter of removing the dispensing hose from the pump, running a short hose to the inlet of the FM40443 and reattaching the dispensing hose to the outlet of the FM40443.

Features:

• Self-Contained Unit
• 1” BSPT for Inlet and Outlets

Filters:

• 4 x FM3104 Fuel Filters

 Mounting:

• The Light Duty Powder Coated Frame has four mounting holes that enable the unit to be secured easily.

Flow:

• 40-100 litres/min
• 5-26.4 gals/min

Note: The pump efficiency may drop off by 10-15% if the pump is not a positive displacement pump, in some pumps the relief valve can be adjusted to compensate some of this flow loss.
