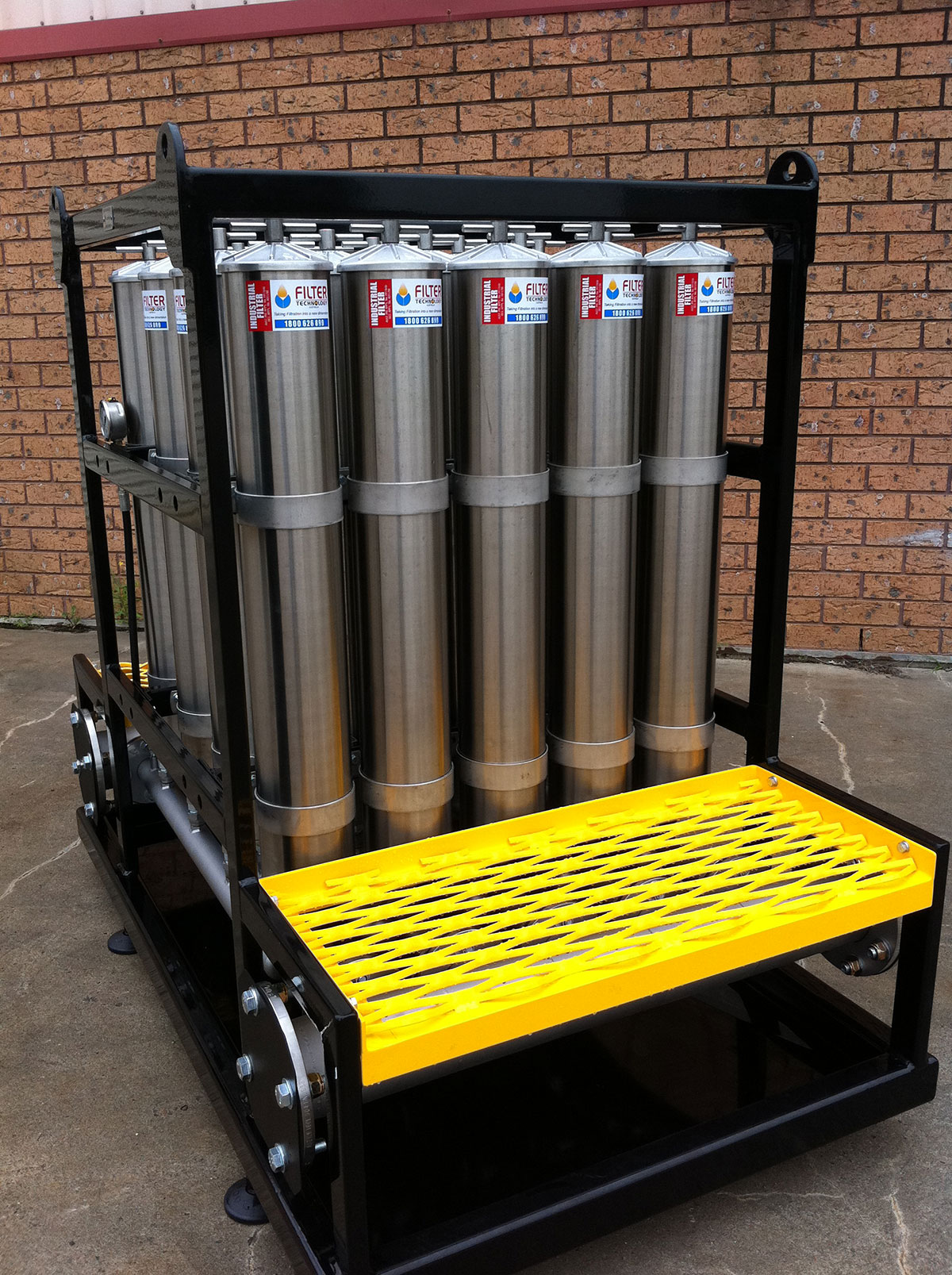

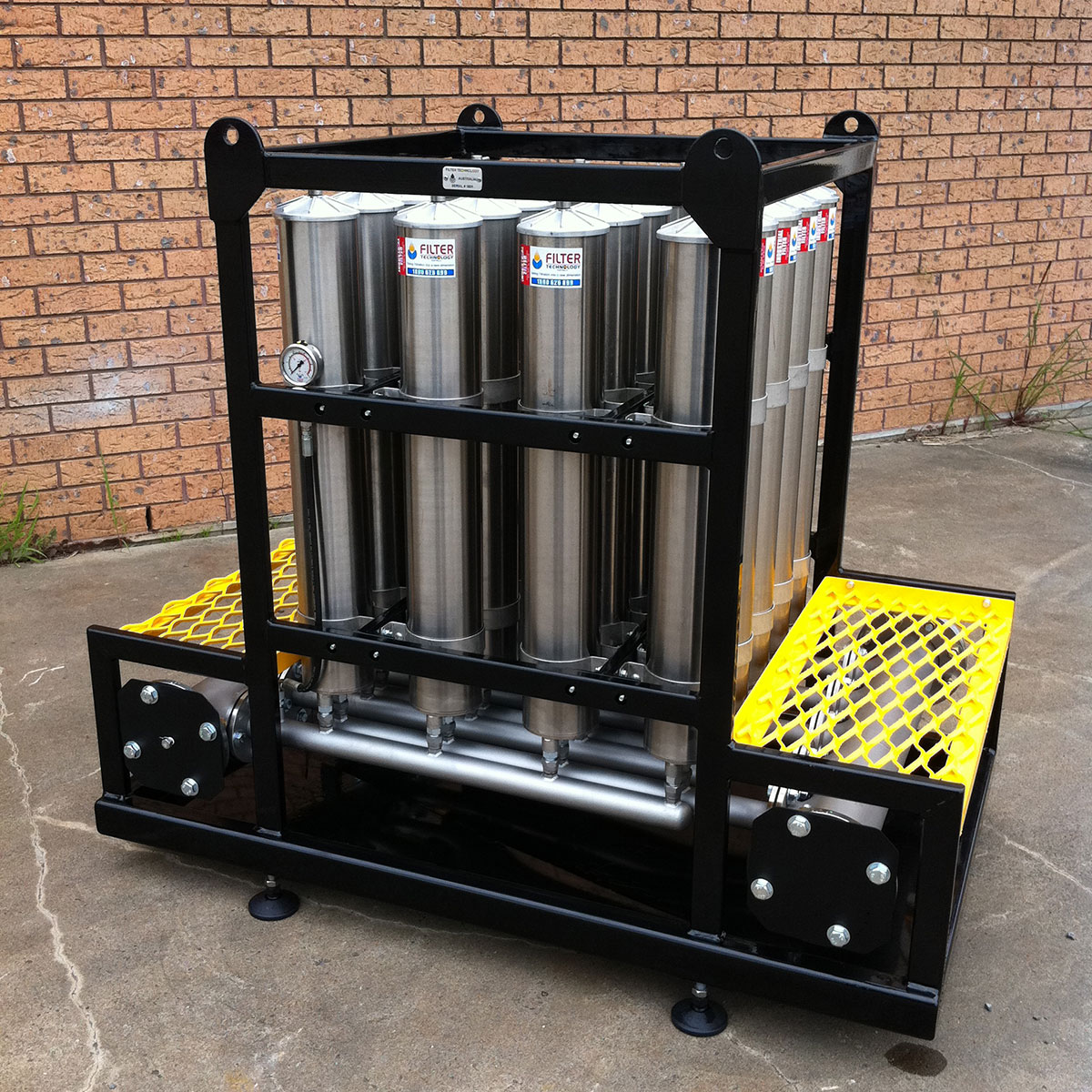

FM42043 Bulk Diesel Filtration Unit
This bulk Filtration unit can be used to filter Diesel Fuel contaminated with moisture, dust, rust, airborne contaminants, fungi and bacteria where the tanks have been treated with a biocide.
Interested in this product?
This unit can also be used as a remote filling station where fuel cleanliness cannot be guaranteed. The filtration unit can be used as either a bulk delivery system or as an intermediate filtering system cleaning diesel from a bulk tank to a day tank. Both these scenarios require and existing pump set-up.
Features
- Flow rate 750 litre/min
- Pressure gauge on the inlet and outlet
- Live sample point on the inlet and outlet
Filters
- 20 x FM3204 industrial filter units.
Suitable for all:
- Diesel fuels
Optional
- Can be trailer-mounted on request.
- RCI Pre-filter water separator
- Flow meter
- Isolation valves on the inlet and outlet
- 3˝ Camlock couplings
FM42043 Dimensions
| Metric | US | |
|---|---|---|
| Height | 1350 mm | 52″ |
| Length | 1200 mm | 47″ |
| Width | 1400 mm | 55″ |
| Weight (wet) | 700 kg | 1543 lb |
| Max pressure | 5 bar | 72 psi |
| Rec. operating pressure | 3 bar | 43 psi |
