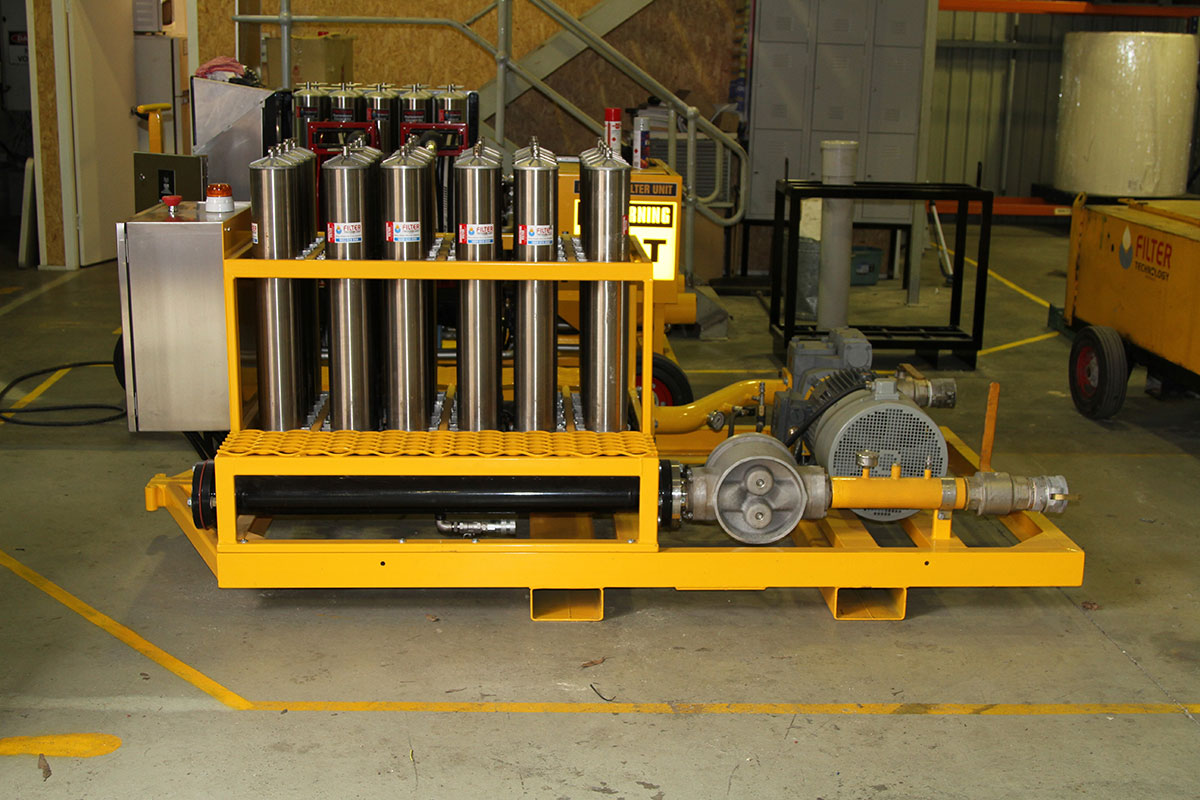

FM42444 Bulk Diesel Filtration Unit
This bulk diesel unit can be used to filter fuel contaminated with dust, rust, airborne contaminants, fungi and bacteria where the tanks have been treated with a biocide. This unit can also be used as a remote filling station where fuel cleanliness cannot be guaranteed.
Interested in this product?
Features
- 415V 32A inlet
- Flow rate 1000 litre/min
- Fitted with pressure relief valve
- Pressure gauge on the inlet and outlet
- Element change light
- Pressure differential switch
- Emergency stop button
- Live sample point on the inlet and outlet
Filters
- 24 x FM3204 industrial filter units.
Suitable for all:
- Diesel fuels
- Most solvents (not suitable for water)
Optional
- Can be trailer-mounted on request.
- RCI Pre-filter water separator
- Flow meter
- Isolation valves on the inlet and outlet
- 3″ Camlock couplings
FM42444 Dimensions
| Metric | US | |
|---|---|---|
| Height | 1350 mm | 52″ |
| Length | 2800 mm | 110″ |
| Width | 1500 mm | 59″ |
| Weight (wet) | 1200 kg | 2645 lb |
| Max pressure | 5 bar | 72 psi |
| Rec. operating pressure | 3 bar | 43 psi |
